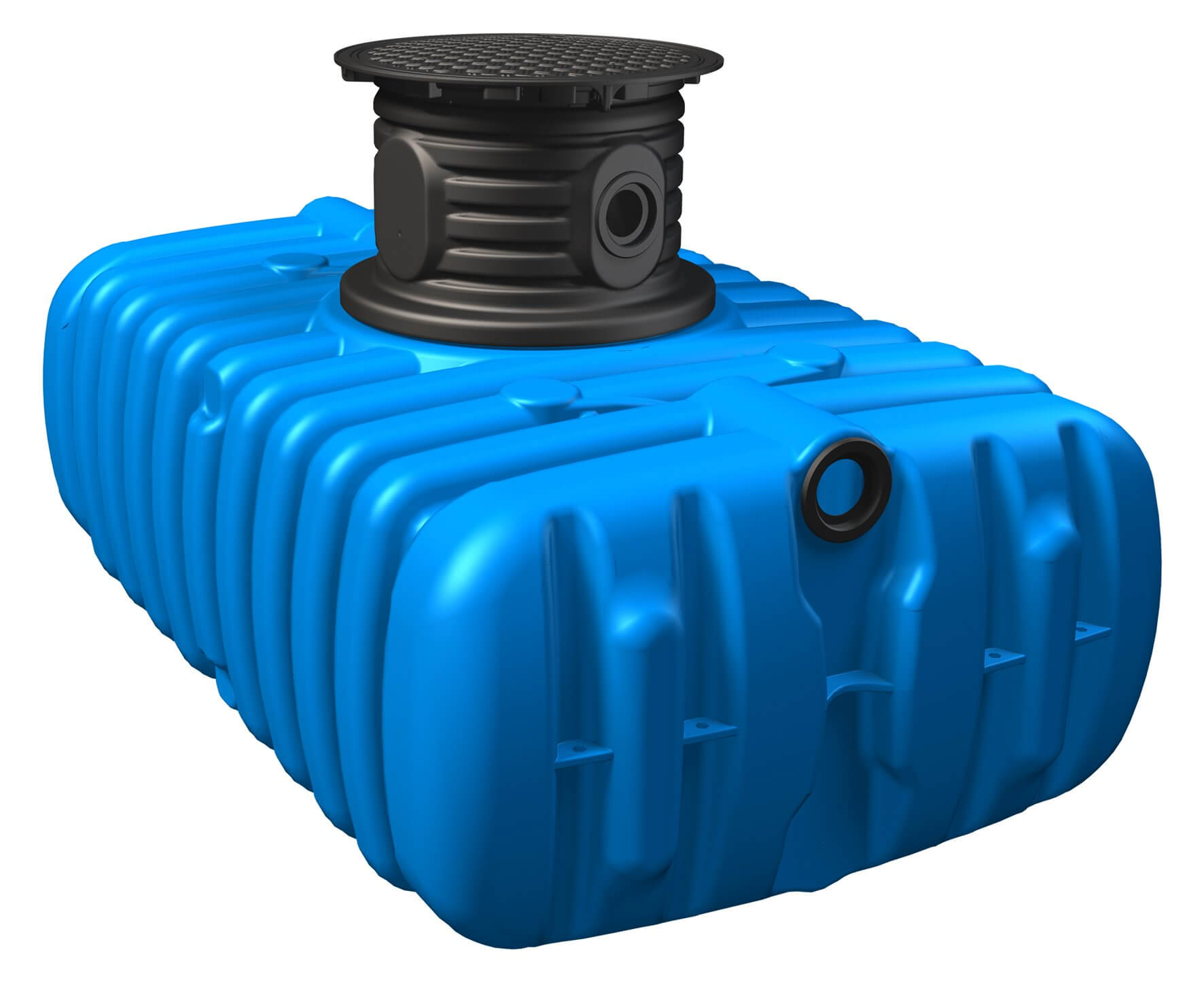

The perfect do-it-yourself tank
- Flat design for little excavation an inexpenisve installation
- Easy handling right into the construction pit due to the low weight of only 80 kg (1.500 l)
- Including tank dome system for frost-proof installation
- Ready for connection through pre-assembled lip seals
- Doem shaft can be rotated 360 degrees for variable, easy installation
- Manhole extension can be shortened for easy adaption to the top of the terrain
- Tank system protected against seepage water
- Tank cover childproof and accessible
- Can be expanded as required using a plug-in connection system
- 100 % recyclable material
Scope of supply:
- Flat tank system with one connecting hole and integrated DN 100 (4") sealing
- Shaft extension with two connecting holes and integrated sealings
- Childproof tank cover
- Connecting set incl. drill (from 3,000 l (793 US gal.))
Advantages
Thought-out in every detail
Proportionally made from our own recycled material, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with durable products!
The minimal installation depth saves you time and money during installation.
Allows easy alignment to the connecting pipes. A tank that turns it`s head for you.
Using rainwater in the garden can save expensive drinking water. In addition, rainwater is lime-free and therefore good for the plants.
Above ground as a garden tank or installation in the cellar. With the appropriate accessories such as support pipe and tank dome, the Herkules tank can also be installed underground.
Proportionally made from our own recycled material, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with durable products!
The minimal installation depth saves you time and money during installation.
Allows easy alignment to the connecting pipes. A tank that turns it`s head for you.
Using rainwater in the garden can save expensive drinking water. In addition, rainwater is lime-free and therefore good for the plants.
Above ground as a garden tank or installation in the cellar. With the appropriate accessories such as support pipe and tank dome, the Herkules tank can also be installed underground.
Sizing
| Volume [l] | Length [mm] | Width [mm] | Height [mm] | Weight [kg] | order no. | add to enquiry |
|---|---|---|---|---|---|---|
| 1500 | 2100 | 1320 | 750 | 80 | 295120 | |
| 3000 | 2100 | 2640 | 750 | 160 | 295121 | |
| 4500 | 2100 | 3960 | 750 | 240 | 295122 | |
| 6000 | 2100 | 5280 | 750 | 320 | 295123 |
calculated size Request for information
