Space-saving and cost-efficient. Specifically designed for use in private and rural areas.

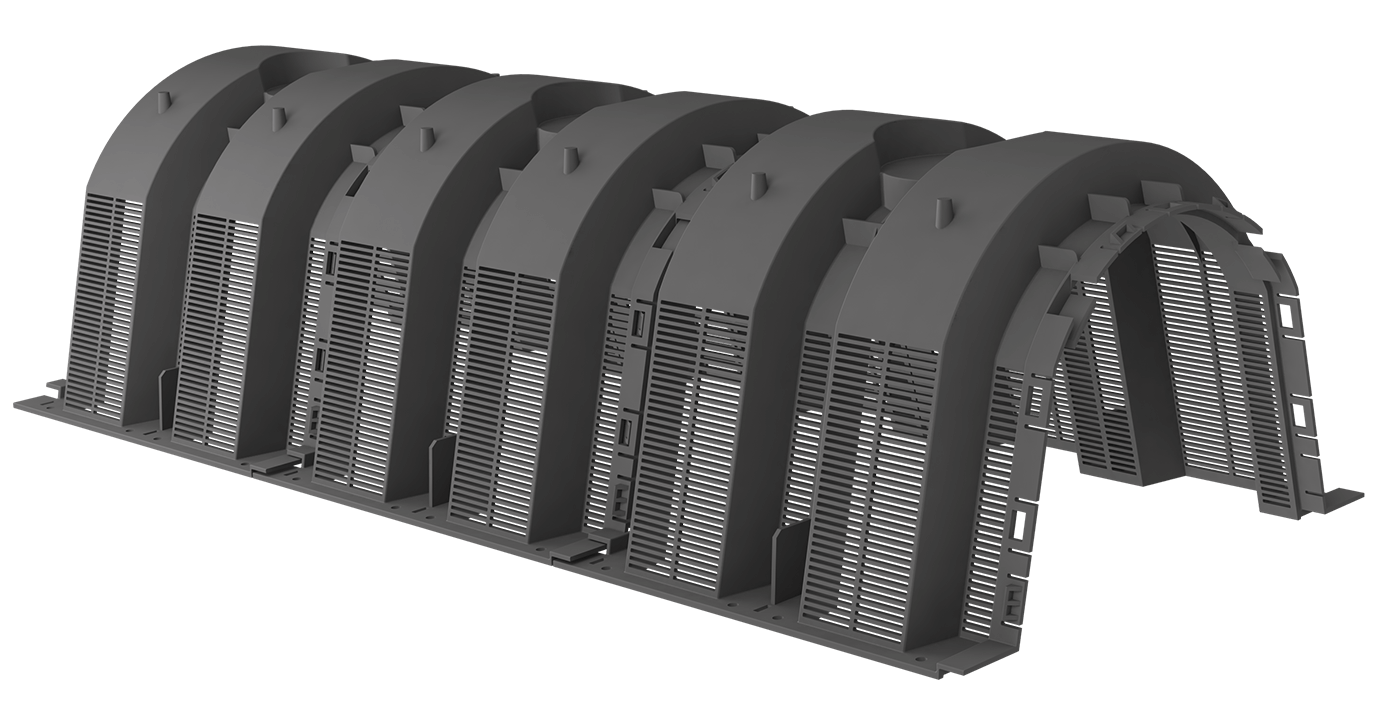

  • The infiltration tunnel 130 has been mainly designed for the use in private and rural areas

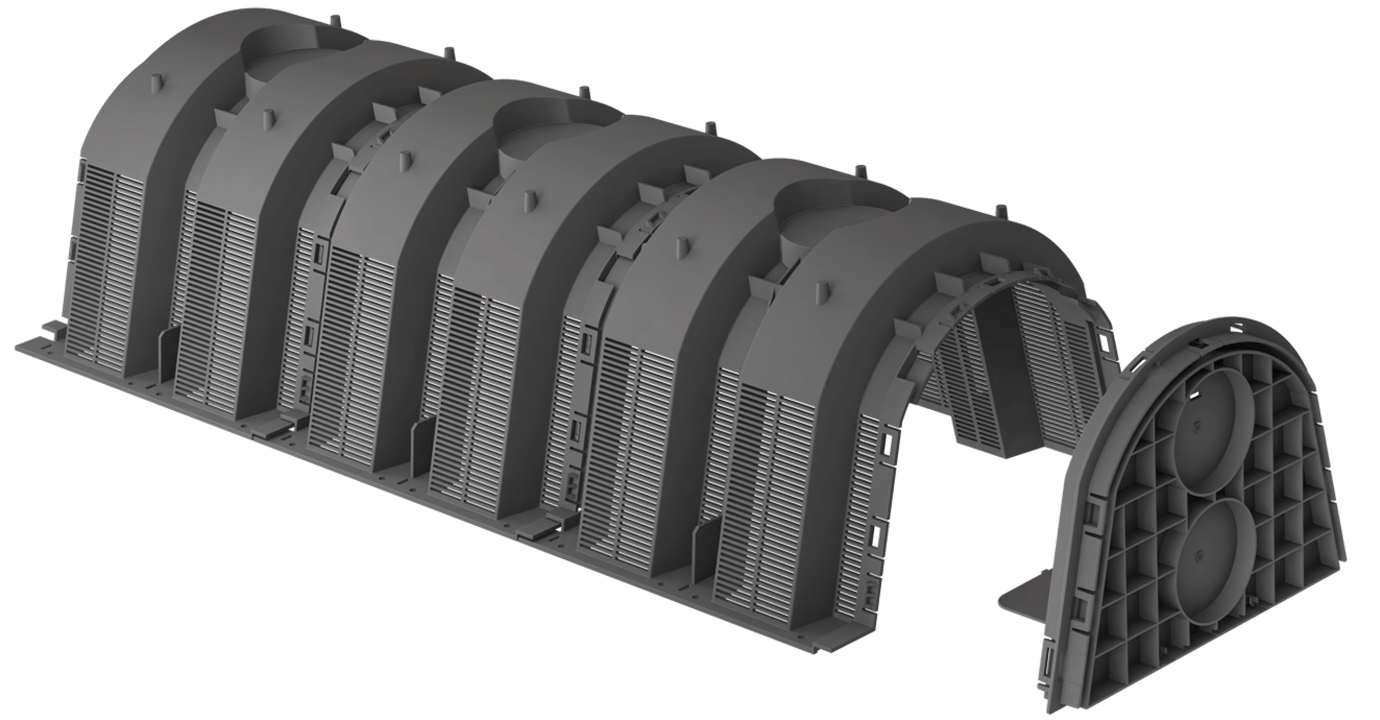

  • The system which consists of one or several tunnel modules and two end plates can be extended at will
  • The laying is realized in one or more lines of the same level
  • As the weight of one module is only 5 kilos, the handling of the infiltration tunnel is excellent
  • The surface beyond the tunnels is suitable for vehicle-loading which offers versatile possibilities

Sizing

Volume [l]Length [mm]Width [mm]Height [mm]Weight [kg]order no.add to enquiry
13011904903204,7410200

calculated size

Downloads

Accessory

Deaeration end DN 100
Deaeration end DN 100
[369017]
Graf-Tex geotextile size 2.50 x 2.50 m
Graf-Tex geotextile size 2.50 x 2.50 m
[231006]
Graf-Tex geotextile; sold by the metre, roll width 5m
Graf-Tex geotextile; sold by the metre, roll width 5m
[231002]
Inspection end DN 200
Inspection end DN 200
[340527]
End plate for infiltration tunnel 130, suitable for vehicle loading
End plate for infiltration tunnel 130, suitable for vehicle loading
[410203]
