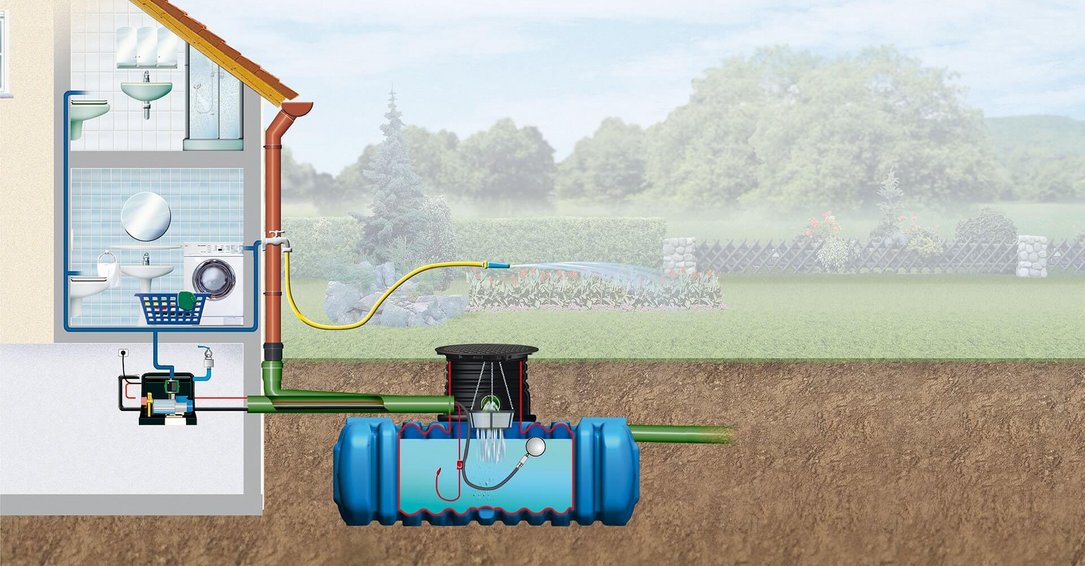

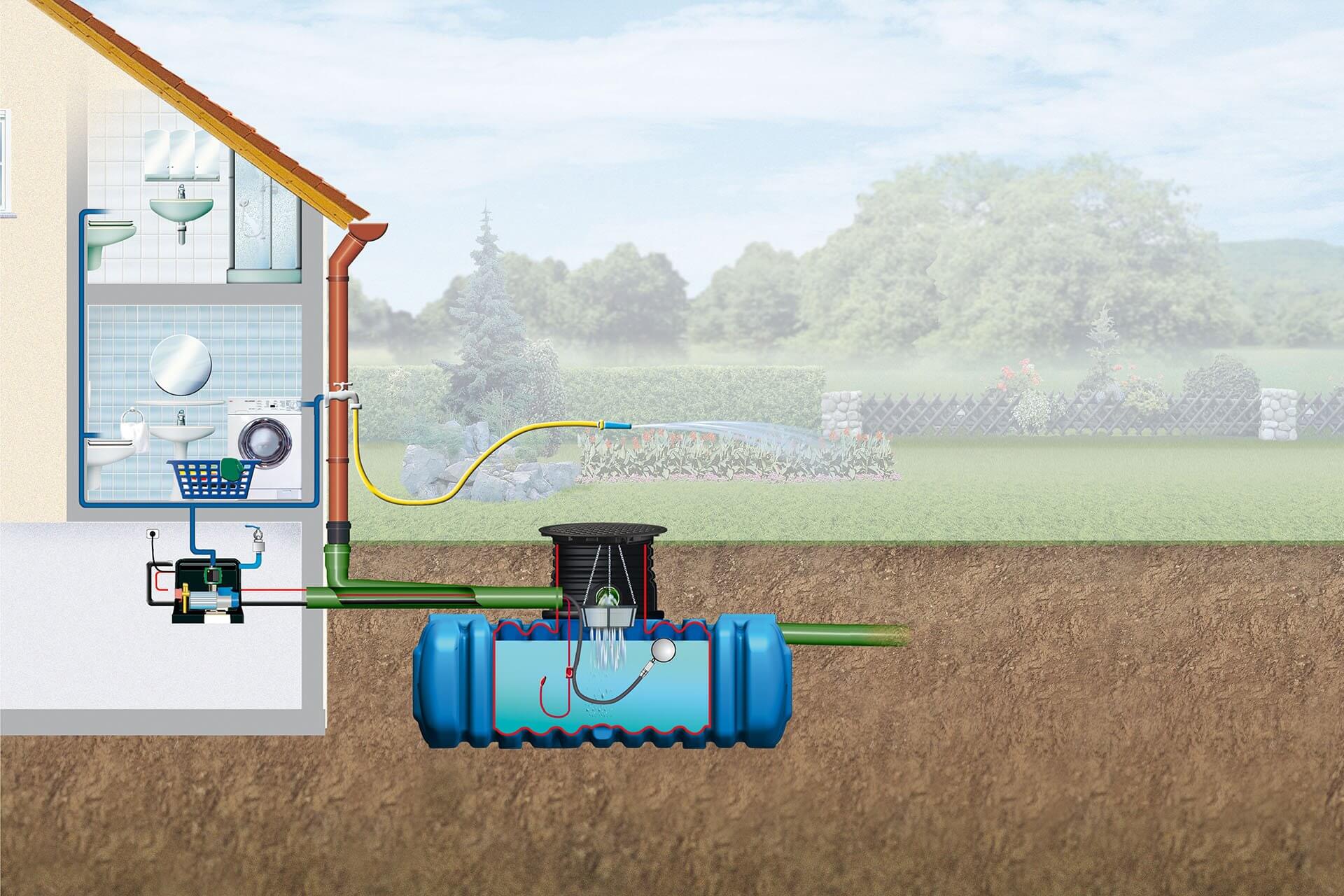

State of the art
All included in the package
- Only two basic components need to be installed – ideal for self installations
- An empty tank activates an internal process that transfers the required quantity of drinking water to the service water mains
- High quality drinking water intake module with quiet-running brand centrifugal pump
Scope of supply:

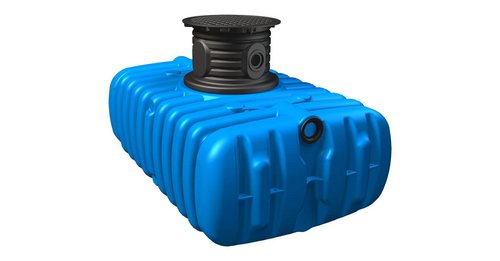

- Flat tank system with one connecting hole and integrated sealing
- Shaft extension with two connecting holes and integrated sealings per tank
- Childproof tank cover per tank
- Connection set including drill
- Filter package 1
- Home-Premium pump package
Advantages
Thought-out in every detail
Proportionally made from our own recycled material, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with durable products!
The minimal installation depth saves you time and money during installation.
Allows easy alignment to the connecting pipes. A tank that turns it`s head for you.
Save up to 50% drinking water. Flushing toilets, cleaning applications, watering the garden or even the washing machine do not require drinking water. In addition, rainwater is absolutely limescale-free.
Above ground as a garden tank or installation in the cellar. With the appropriate accessories such as support pipe and tank dome, the Herkules tank can also be installed underground.
Proportionally made from our own recycled material, which is produced in our competence centre for raw materials in Herbolzheim. Your contribution to environmental protection with durable products!
The minimal installation depth saves you time and money during installation.
Allows easy alignment to the connecting pipes. A tank that turns it`s head for you.
Save up to 50% drinking water. Flushing toilets, cleaning applications, watering the garden or even the washing machine do not require drinking water. In addition, rainwater is absolutely limescale-free.
Above ground as a garden tank or installation in the cellar. With the appropriate accessories such as support pipe and tank dome, the Herkules tank can also be installed underground.
Sizing
| Volume [l] | Length [mm] | Width [mm] | Height [mm] | Weight [kg] | order no. | add to enquiry |
|---|---|---|---|---|---|---|
| 3000 | 2450 | 1600 | 1085 | 155 | 295145 | |
| 6000 | 2450 | 3200 | 1085 | 275 | 295146 | |
| 9000 | 2450 | 4800 | 1085 | 390 | 295147 | |
| 5000 | 2450 | 2100 | 1340 | 240 | 295149 | |
| 10000 | 2450 | 4200 | 1340 | 480 | 295150 | |
| 15000 | 2450 | 6300 | 1340 | 720 | 295151 |
calculated size Request for information
