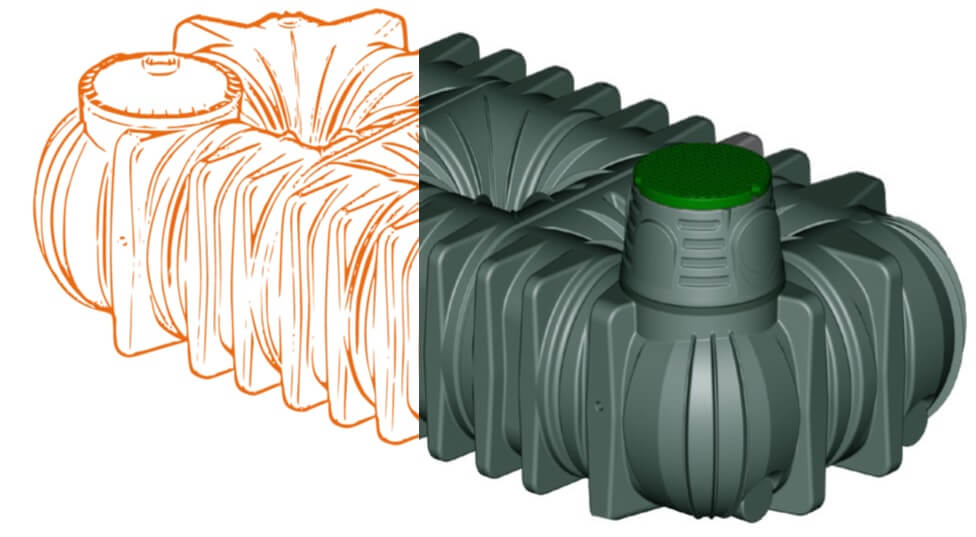

Li-Lo XL Underground Tank

The Lilo XL Rainwater Tanks are expertly engineered to meet large-volume rainwater storage needs across various applications, with the XL model specifically designed for efficient harvesting in areas requiring shallow installation.
Available in sizes from 7,500 to 15,000 litres, the Lilo XL tank is engineered with Garantia’s renowned expertise to deliver robust construction, compact footprint, and efficient rainwater harvesting—ideal for scenarios requiring substantial storage without compromising on space.


The Lilo XXL tank features a flat, space-saving design tailored for shallow installations. With seamless integration, exceptional durability, and optimised water collection performance, both tanks represent smart, sustainable water management solutions across various applications.

  • Rotating tank dome to easily align the connecting lines
  • Available with a second tank dome as an option or single access with a Dome plug
  • Suitable for Heavy Duty vehicle loading up to a vehicle weight of 30 t (66138 lbs)
  • Flexible connection up to DN 300 with Welded Spigot
  • Connection openings with option DN100 OR DN 150 lip seals
  • Tank height of just 130 cm
  • High-quality filter technology, integrated DN 100 OR DN 150
  • Dome opening with stainless steel profile for precision fit and secure mounting



Sizing Pedestrian

Volume [L] Length [mm] Tank Height [mm] Weight [kg] Access points Code
7500L 3,600 1,910 2,250 1 07.2001
10,000L 4,900 1,910 2,250 1 07.2011
10,000L 4,900 1,910 2,250 2 07.2014
15,000L 7,500 1,910 2,250 1 07.2021
15,000L 7,500 1,910 2,250 2 07.2024

Sizing Class B

Volume [L] Length [mm] Tank Height [mm] Weight [kg] Access points Code
7500L 3,600 1,910 2,250 1 07.2002
10,000L 4,900 1,910 2,250 1 07.2012
10,000L 4,900 1,910 2,250 2 07.2015
15,000L 7,500 1,910 2,250 1 07.2022
15,000L 7,500 1,910 2,250 2 07.2025

Sizing Class D

Volume [L] Length [mm] Tank Height [mm] Weight [kg] Access points Code
7500L 3,600 1,910 2,250 1 07.2003
10,000L 4,900 1,910 2,250 1 07.2013
10,000L 4,900 1,910 2,250 2 07.2016
15,000L 7,500 1,910 2,250 1 07.2023
15,000L 7,500 1,910 2,250 2 07.2026
